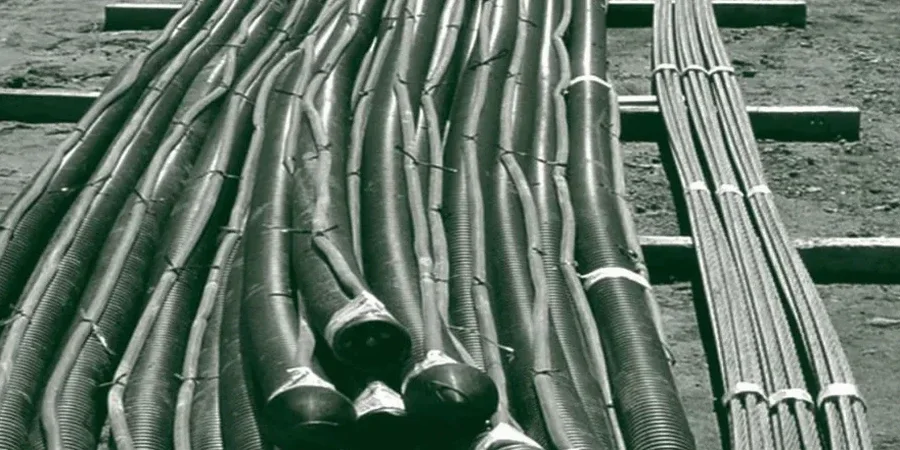

The Laurentian foothills present a mixed profile that keeps excavation crews on their toes: a shallow crust of compact glacial till overlying pockets of the Champlain Sea clay that can lose strength when disturbed. In Saint-Jerome, where winter frost can reach 1.5 meters and spring thaw saturates the silty overburden, designing an anchor system means reading the stratigraphy layer by layer. We combine laboratory shear strength data with bond stress calculations to define whether an active tendon, stressed against a bearing plate, or a passive grouted bar, mobilized by ground deformation, fits the ground conditions. Before committing to a shoring scheme, many contractors cross-check the till density with an in-situ permeability test to anticipate grout take, because a leaky horizon can double the injection volume overnight.
A passive anchor in Saint-Jerome’s medium-stiff clay can develop 35 kN/m of bond if the grout pressure stays below the fracture threshold of 300 kPa.
Process and scope
Site-specific factors
Sites in the older Bellefeuille sector sit on a thick till blanket that drains well and provides predictable bond, while excavations near the Rivière du Nord floodplain frequently encounter soft grey clay with a liquidity index above 1.0. That contrast means the same anchor spacing can yield a factor of safety of 2.0 in one location and barely 1.2 in another. The biggest risk we see is progressive creep in passive anchors installed through desiccated crust into the sensitive clay below: the upper crust cracks, water enters the interface, and the bond stress degrades over successive freeze-thaw cycles. A lock-off load set too high in winter can also overload the bearing plate when the ground thaws and the elastic rebound pushes the strand beyond yield. We run consolidated-undrained triaxial tests to capture the effective stress path and confirm whether the clay will contract or dilate under shear, which directly influences the long-term anchor capacity.
Watch the video
Reference standards
CSA A23.3 – Design of Concrete Structures (anchor ductility & detailing), NBCC 2020 – National Building Code of Canada (excavation support provisions), CAN/CSA-A3000 – Cementitious materials for grout mix design, PTI DC35.1 – Post-Tensioning Institute recommendations for rock & soil anchors
Other technical services
Active Anchor Design & Verification
We design post-tensioned anchors with a defined free length and bonded zone, sized for the lateral earth pressure and surcharge of each project. The package includes load-deformation curves, lock-off load recommendation, and on-site acceptance testing with creep monitoring per PTI standards.
Passive Anchor (Soil Nail) Design
For top-down shoring in till and stiff clay, we specify the drill hole diameter, bar grade, and grout injection pressure. Performance is validated through sacrificial pull-out tests that measure the ultimate bond resistance before production drilling begins.
Typical parameters
Frequently asked questions
What is the typical cost for anchor design and testing in Saint-Jerome?
The combined design, laboratory testing, and on-site pull-out verification for an anchor system in Saint-Jerome generally ranges from CA$1.530 to CA$5.530, depending on the number of anchors, the depth of the cut, and the number of test cycles required by the geotechnical review board.
When should we use active anchors instead of passive soil nails?
Active anchors apply a pre-stress load that limits movement immediately, making them suitable for deep excavations adjacent to existing structures or sensitive utilities in Saint-Jerome’s downtown area. Passive nails mobilize resistance through deformation, so they work better in cuts where a few millimeters of movement are acceptable and the retained soil has sufficient stand-up time.
How are the bond length and free length determined?
The free length must extend beyond the theoretical failure plane by at least 1.5 meters or 20% of the total anchor length. The bond length is calculated from the ultimate bond stress measured in pull-out tests, divided by a resistance factor that accounts for the variability of the Champlain Sea clay or till at the specific Saint-Jerome site.
What documentation is required for the anchor acceptance record?
Each anchor needs a calibrated load cell log showing the incremental load steps, the displacement readings at each plateau, and the creep rate over the 60-minute sustained load period. The record must be stamped by a professional engineer and cross-referenced with the grout batch tickets and the laboratory compressive strength cylinders.
